Now you are at> Machine types > Circular Cord Weaving Machine (Ear Rope For Mask)

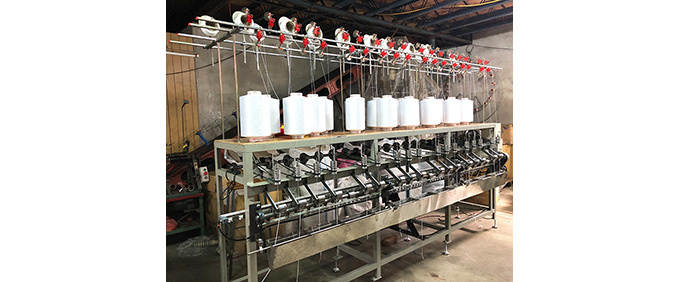

Description of Machine
Model: CCW02
Feeder: Standard:15 Heads / SET (Customized:20-30 Heads / SET)
Diameter /
Needles:
Cylinder Diameter:1 / 2〞
Needles:6N

R. P. M. / Volume:

Approx 1600 rounds per minute
Space Occupied:L 300 CM x W 60 CM x H 190 CM
WORKING SPACE:L 400CM x W 220 CM x H 190 CM

Material:

Mixed Knited with OP (Lycra) 70D*1 thread + Nylon 140D*1 thread
The Density of Straight Strong Pulling:4 courses / 1 CM
Multiple of Stretching:1:2.5~3.0
Capacity: Approx . 78 gram / hour / head ( approx. 72 meters / hour / head )
Power / Machine Weight: Power:0.3 KW、1 Phase (Availbale for 3 Phases)
Machine Weight:150 KGS
Others:

The ear ropes now are available for sale. Please feel free to contact us if you are iterested to purchase.

Optional System: (1) Static Eliminator.
(2) Individual Yarn Break Detector.
(3) Individual Malfunction Bounce System.
Feature:

(1) High density aluminum cover with excellent heat dissipation.
(2) Special steel needles track has good abrasion resistance.
(3) Individual yarn tensioner.
(4) Core(tape) take down roller system with speed adjustable control 123.
(5) Take down roller with pressure spring, more safety and easy to take out and in the core between rollers while maintaining process.
(6) Swing device with speed adjust control, when core taking out during production will be more smooth and reduce core twisted, tie and knot.
(7) Single rod transmission system makes machine be stable and saving.

Application:

Maximum available yarn count is 210 Denier.
Suitable for all kinds of yarns such as Cotton, Spun Polyester, Single Cover Spandex, Double Cover Spandex, Recycled Yarn, Latex, Lycra, Acrylic, Wool Blended Yarn, Thermal Yarn, Cooling Yarn, Moisture Absorption Yarn, Thermo-fusible Adhering Yarn, Antibacterial Yarn, Functional Yarn, Core Spun Spandex Yarn, Graphene Yarn, Coffee Yarn, Coconut Charcoal Yarn, Angora Yarn, Collagen functional yarn, silver electro conductive yarn, Metal Cover yarn, Charcoal Fiber Yarn, Flame Retardant Eco-yarn, Cashmere yarn, Merino Wool Yarn and etc…

Application Products.:

Ear rops for disposable masks, ear ropes for medical masks, ear ropes for surgical masks.

Workers: 15 heads per set x 6 sets by 1 worker
