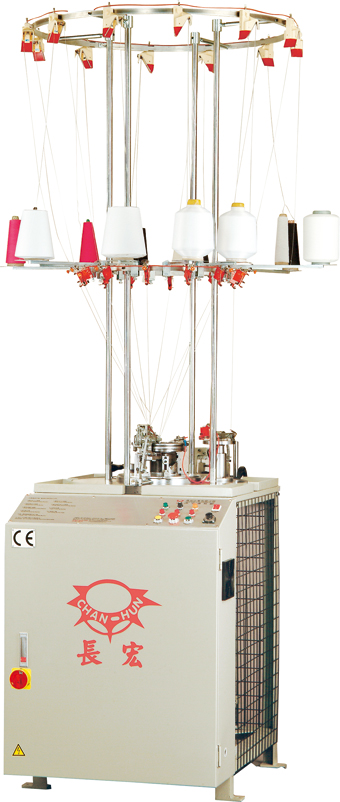

Circular Towel Knitting Machine
Model: CH-CT01-E
Application:
Suitable for all kinds of yarns. Pure cotton, synthetic yarn and blended fabrics.
Features:

The machine is excellent design, solid structure and easy operation. And beginner can easily operate it. When the needle breaks, yarn breaks and collecting cylinder is filled, the electronic sensor device can stop machine running and cut power immediately so as to reduce the waste of material and power.

Cylinder Diameter: 2 1/2〞to 16〞.
Gauge: Below 18G
Number of Needle:

It can be appointed by customer's requests.

Power: 1/2 HP ~1HP (The voltage and frequency of motor can be appointed at the request of customer.)
Feeder:: 1F~8F
Color Schemen: 4 colors
R. P. M.

10〞to 75/ 8〞to 100/ 4〞to 150.

Space Occupied: 110CM X 100CM
Height: 300CM
Capacity:

Headband:40 doz/8h; Wrist Protector:40 doz/ 8h;
Braid(Small) :1100 pcs/ 8h; Bathing Towel:14 doz/ 8h

Specification of Machine
Size

4〞

10〞

Net Weight

250 KGS

308 KGS

Gross Weight

350 KGS

408 KGS

Packing Dimensions

110 cm X 110 cm X 215 cm

110 cm X 110 cm X 215 cm
