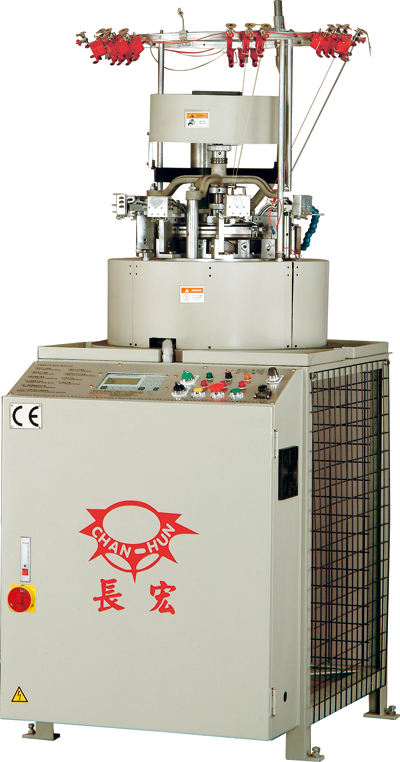

Single Side Computerized Jacquard Machine
Model: CH-SCJ01-C Below 5〞
CH-MCJ01-C 6〞to 16〞
Application:
Suitable for all kinds of yarns. Pure cotton, synthetic yarn and blended fabrics.
Features:

(1) The machine possesses excellent design, solid structure and easy operation. And beginner can easily operate.
(2) Pattern and setting up parameter can be saved in USB input and output.
(3) Possibility of 15 color plus ground on the same line.
(4) One main feed plus five pattern feeds on the same course(only for size 10” or over 10”).
(5) Pattern Depth up to 480,000 dots. (BMP)
(6) Actuator can be chosen freely during 8 butts.
(7) For differing way of knitting. It can purchase optional parts.
(8) Available in 220/380/415V, 3phase, 50/60Hz.

Cylinder Diameter: 2 1/2〞to 16〞
Gauge: 1.5G to 26G(single side)
Number of Needle:

It can be appointed at the request of customer

Power: 1/2 HP ~1HP(the voltage and frequency of motor can be appointed at the request of customer)
R. P. M.

10〞to 60/8〞to 80/4〞to 100

Space Occupied: 110CM X 100CM
Height: 300CM
Specification of Machine
Size 6〞 7〞 8 1/2〞 10〞
Net Weight 280KGS 300KGS 310KGS 320KGS
Gross Weight 385KGS 440KGS 450KGS 460KGS
Packing Dimensions

120 cm x 87cm x 168 cm

125 cm x 102 cm x 168 cm

138 cm x 109 cm x 168 cm 138 cm x 109 cm x 168 cm
