Now you are at> Machine types > Circular Grain Knitting Machine

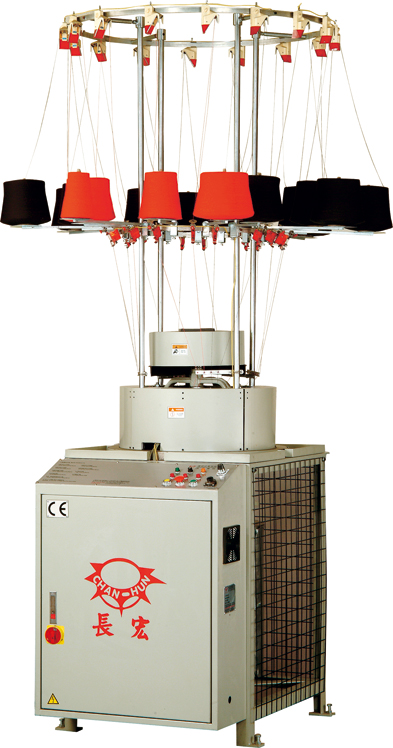

Circular Grain Knitting Machine
Model: CH-CG01
Application: Suitable for all kinds of yarns. Pure cotton, synthetic yarn and blended fabrics.
Function:

Grain Cap, indoor socks, scarves, cuff…etc. It can be developed from customer’s demand.

Feature:

The machine is excellent design, solid structure and easy operation. And beginner can easily operate it. When the needle breaks, yarn breaks and collecting cylinder is filled, the electronic sensor device can stop machine running and cut power immediately so as to reduce the waste of material and power.

Cylinder Diameter: 4〞 to 16〞
Gauge: Below 12G.
Number of Needle:

It can be appointed at the request of customer.

Power: 1/2 HP ~1HP (the voltage and frequency of motor can be appointed at the request of customer.)
Feeder:

4F to 10F.

Color Scheme:

4 colors.

R. P. M.

60 to 120

Space Occupied: 110 CM X 100 CM
Height: 300CM.
Capacity: Grain cap:30 doz/8h; indoor socks:24doz/ 8h;
scarves:11doz/ 8h; cuff:400 pcs/ 8h; cuff:4800”/ 8h.
Specification of Machine
Size 5〞 7〞 8 1/2〞 10〞 12〞
Net Weight 200KGS 265KGS 270KGS 330KGS 352KGS
Gross Weight 350KGS 415KGS 420KGS 480KGS 502KGS
Packing Dimensions 114cm x 92cm x 143cm 120cm x 97cm x 143cm 122cm x 100cm x 148cm 122cm x 100cm x 148cm 122cm x 100cm x 160cm
